Description

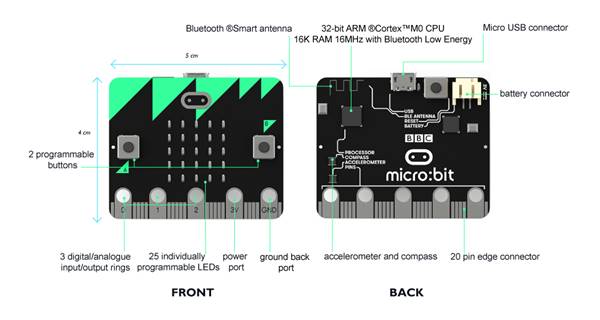

micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects and robotics.

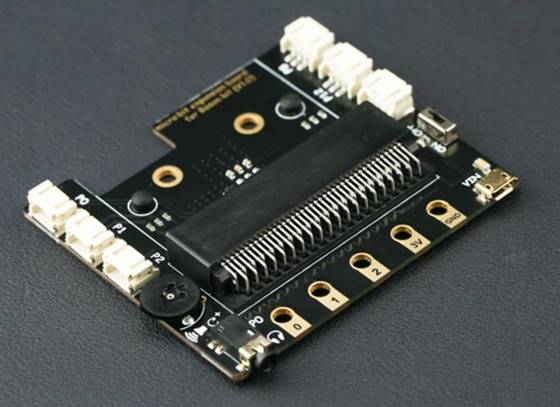

However, on-board I/O rings and crocodile clips sometimes are not handy and safe enough to connect peripherals. To explore more possibilities with micro:bit, we have designed the micro:bit Expansion Board for Boson, a carry-on board that connects to micro:bit via edge connector.
The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot€™s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light and motion interaction.
Moreover, the on-board 3.5MM headphone jack and volume knob supports direct connection of headphone.
To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the USB power port.
micro:bit Boson game pad
micro:bit RGB LED heart rate monitor

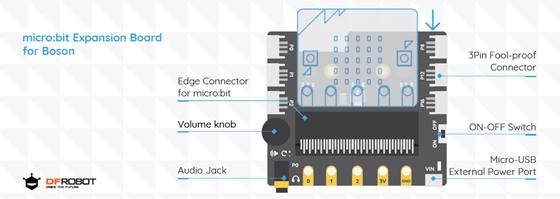

FEATURES
- 3-Pin fool-proof connector x 6
- Headphone jack with volume knob
- External power port and ON/OFF switch
- DFRobot Gravity and Boson electronic module compatible
DOCUMENTS
Technical Details
- MicroUSB Power Port Voltage：5V
- PH2.0 Input/output Voltage: 3.3V
- Input/output ring Voltage: 3.3V
- Maximum Current: 500mA
- Working temperature: 0-85 „ƒ
- Dimension 80 * 70 mm / 3.15 * 2.76
- Weight: 48g
Shipping List
- 1x micro:bit Expansion Board for Boson
- 6x 200mm fool-proof PH2.0 cable
