Description

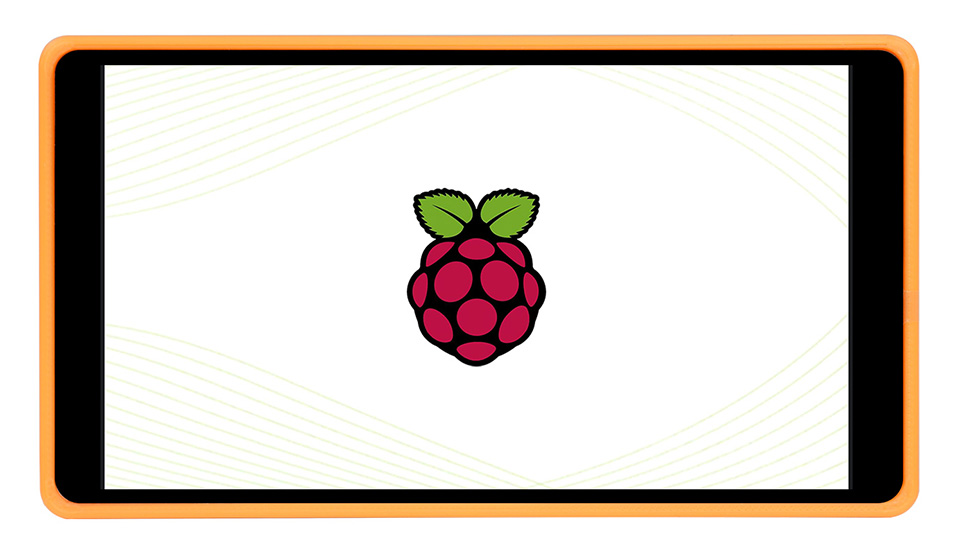

5.5″ Touch AMOLED
The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.
Device & System Support
- Supports Raspbian, 5-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports Pi 4B/3B+/3A+/3B/2B/B+/A+

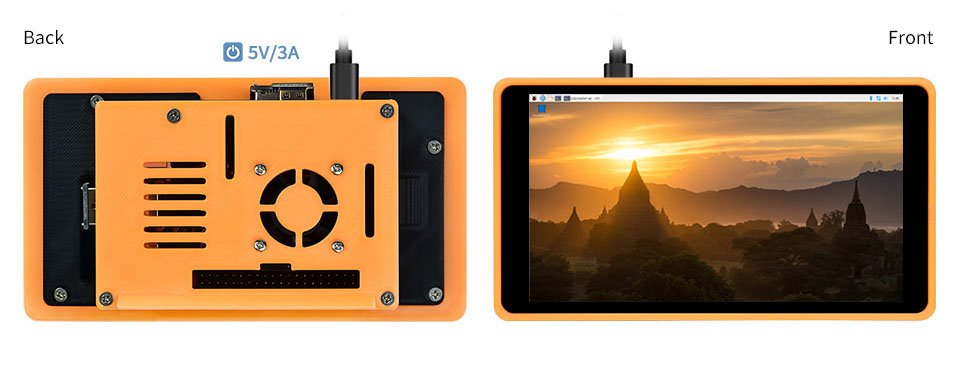

Hookup Example
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+

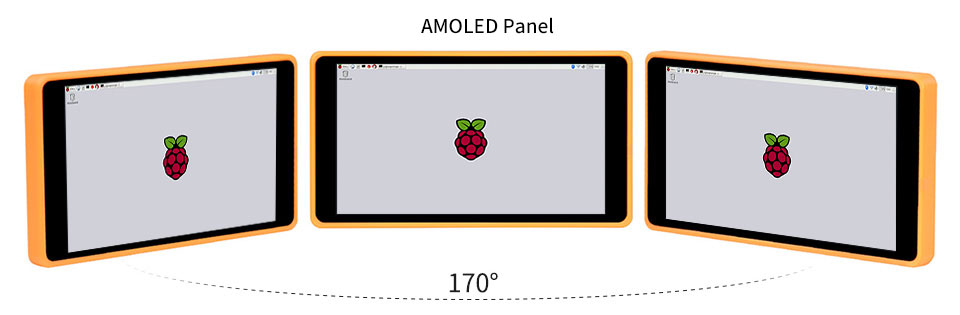

Display

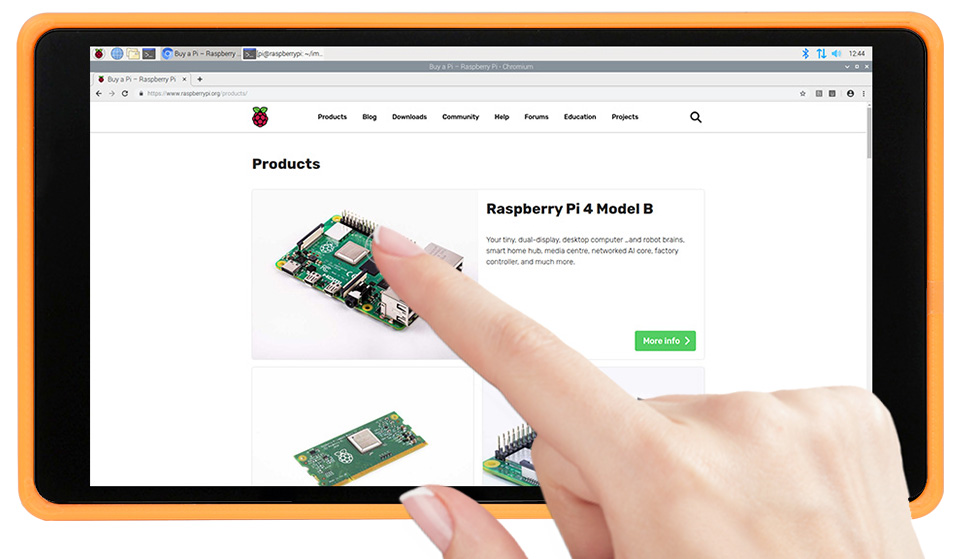

Touch Control
1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Appearance And Dimensions
Note: the dimensions are measured manually, for reference only.
Note: 1) Raspberry Pi is NOT included. 2) the case is 3D-printed, so you may feel the surfaces is a little bit rough, please make sure you don’t mind it before purchasing.

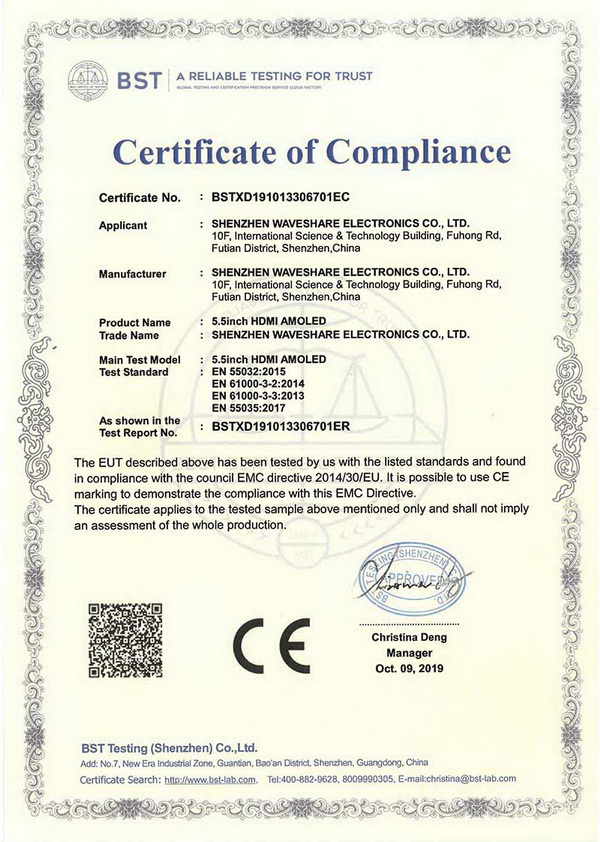

Product Certification
HDMI Certified
* We are an official authorized HDMI Adopter.
CE Certified
* This display is in compliance with CE standard.
Development Resources
Wiki: www.waveshare.com/wiki/5.5inch_HDMI_AMOLED
Shipping List
- 1x 5.5inch HDMI AMOLED
- 1x HDMI cable
- 1x USB type A plug to micro B plug cable
- 1x HDMI adapter (B)
- 1x USB adapter (B)
- 1x HDMI to Micro HDMI adapter (C)
- 1x USB adapter (C)
- 1x Screws pack
- 1x 3D-printed case
- 1x 5V cooling fan
- 1x Quick start sheet
