Description
7″ HDMI Touch Display
| Size | Resolution | Display Port | Display Panel | Viewing Angle |
 |
 |
 |
 |
 |
| 7″ | 1024×600 | HDMI | IPS | 170° |
| Touch Type | Touch Points | Touch Port | Consumption | Certification |
 |
 |
 |
 |
 |
| Capacitive | 5-Points | USB | Low Power | CE |
Device & System Support
- Supports Raspbian, 5-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
- Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Connection Examples

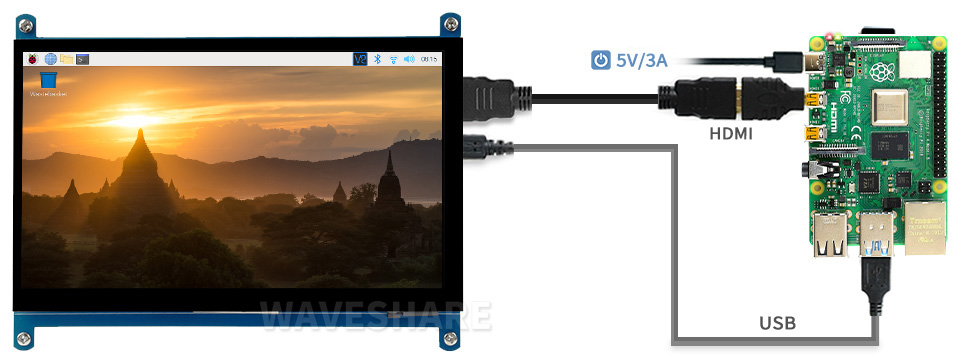

Working With Raspberry Pi 4

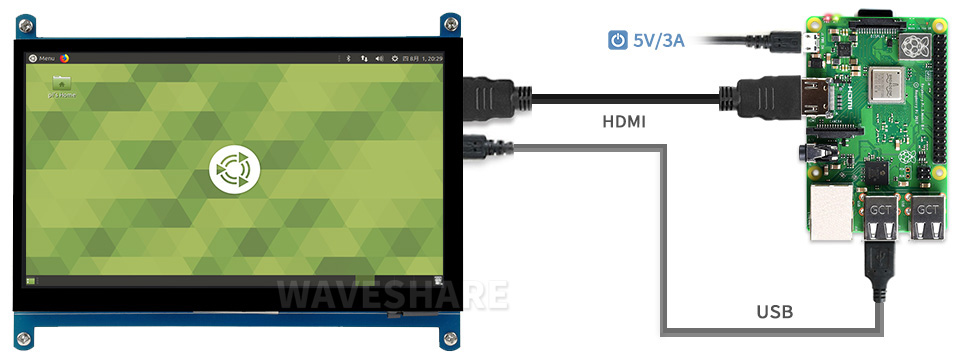

Working With Raspberry Pi 3B+

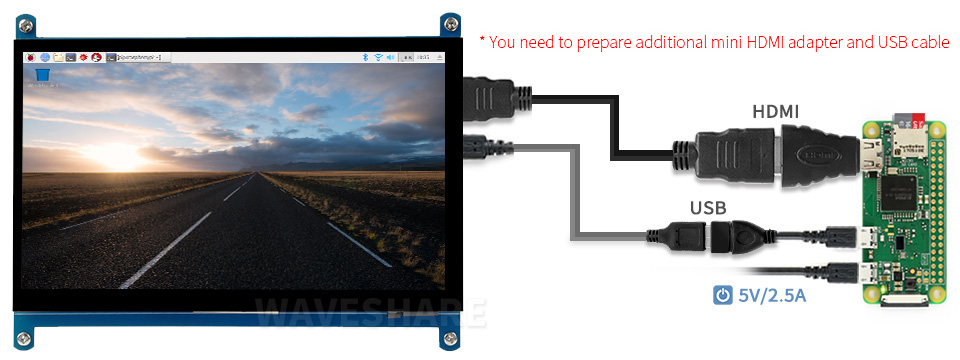

Working With Raspberry Pi Zero W

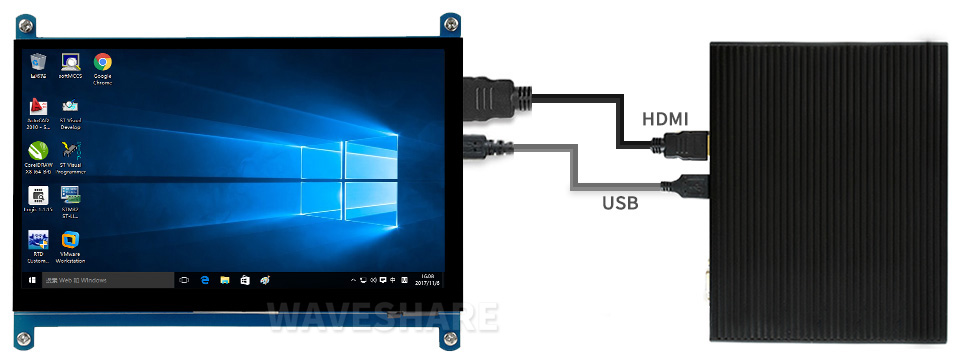

Working With Mini PC

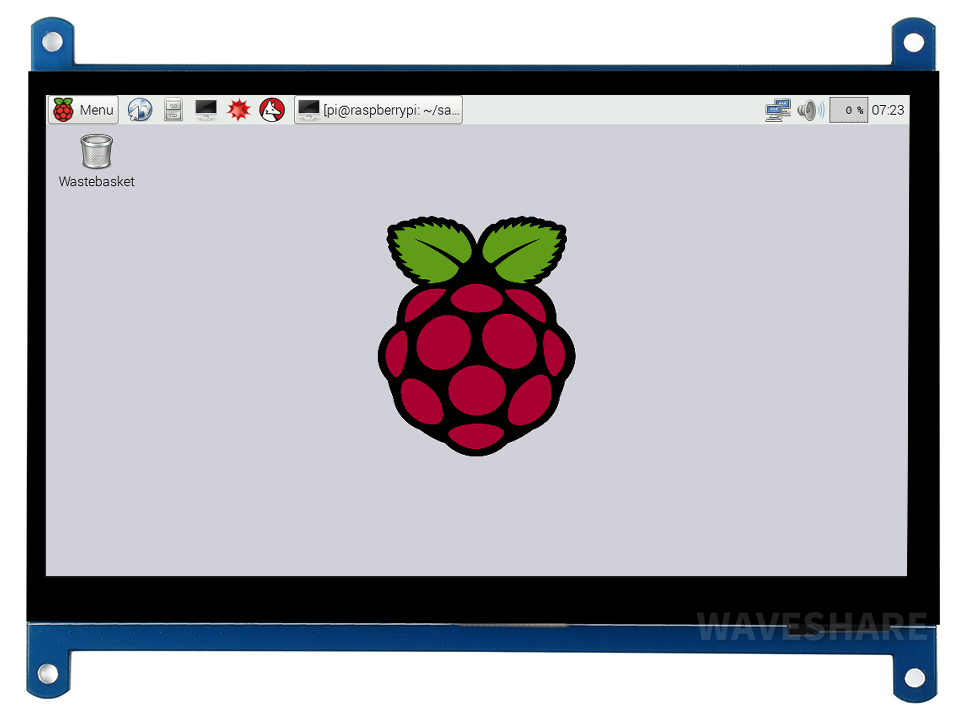

Display

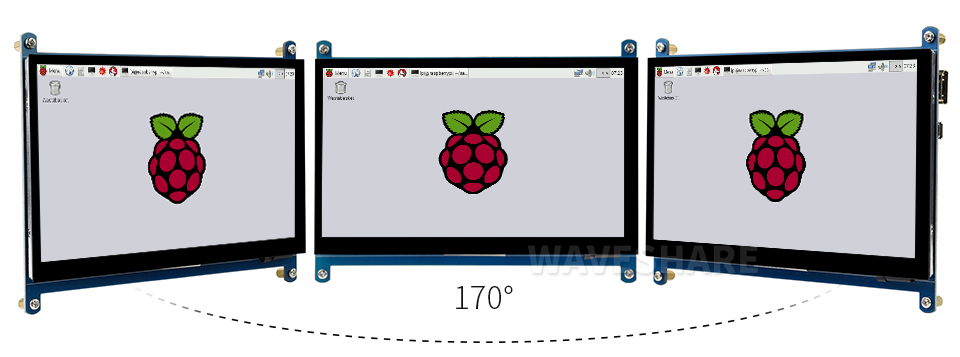

IPS Panel

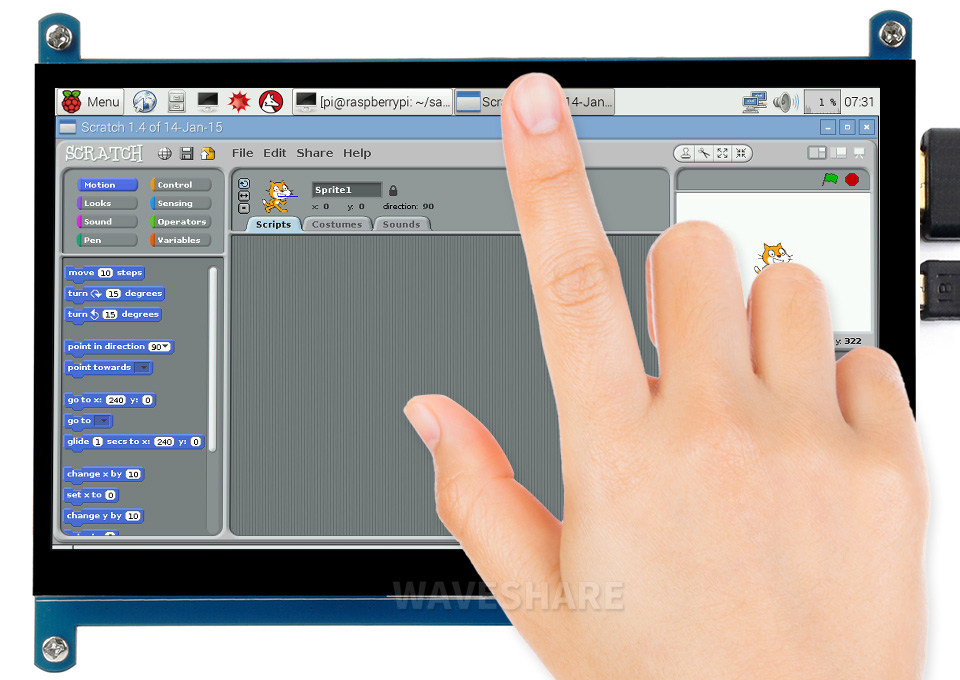

Touch Control
1) up to 5-points touch, depending on the operating system.

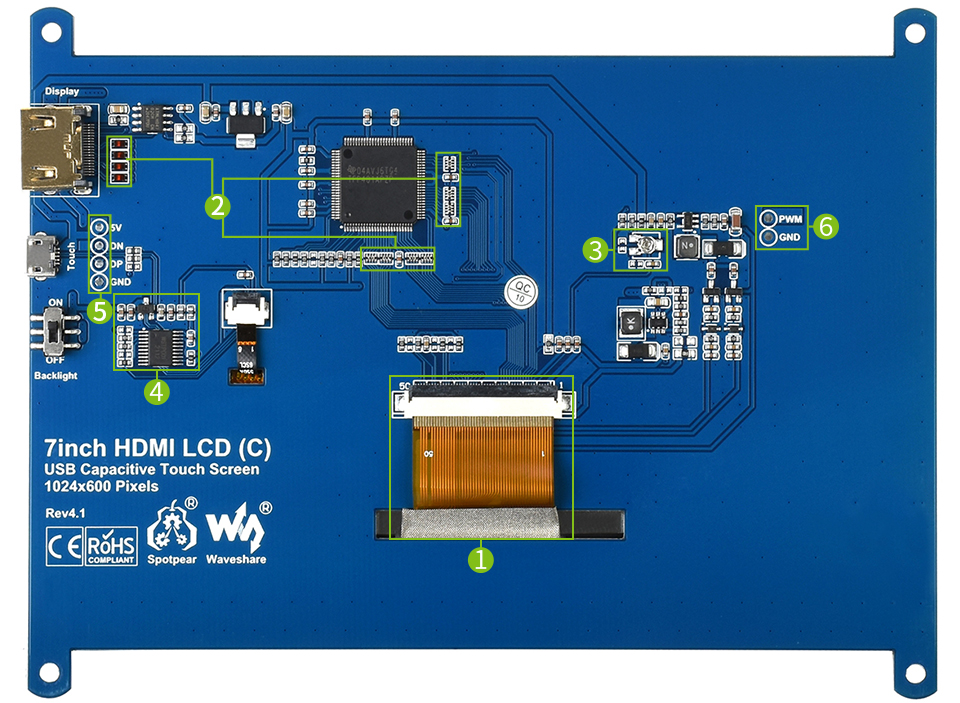

Demystifying Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- EMI and ESD protection, in compliance with CE certification
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- USB and power input solder pads, breakout USB interface, easy for connecting external power supply
- Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

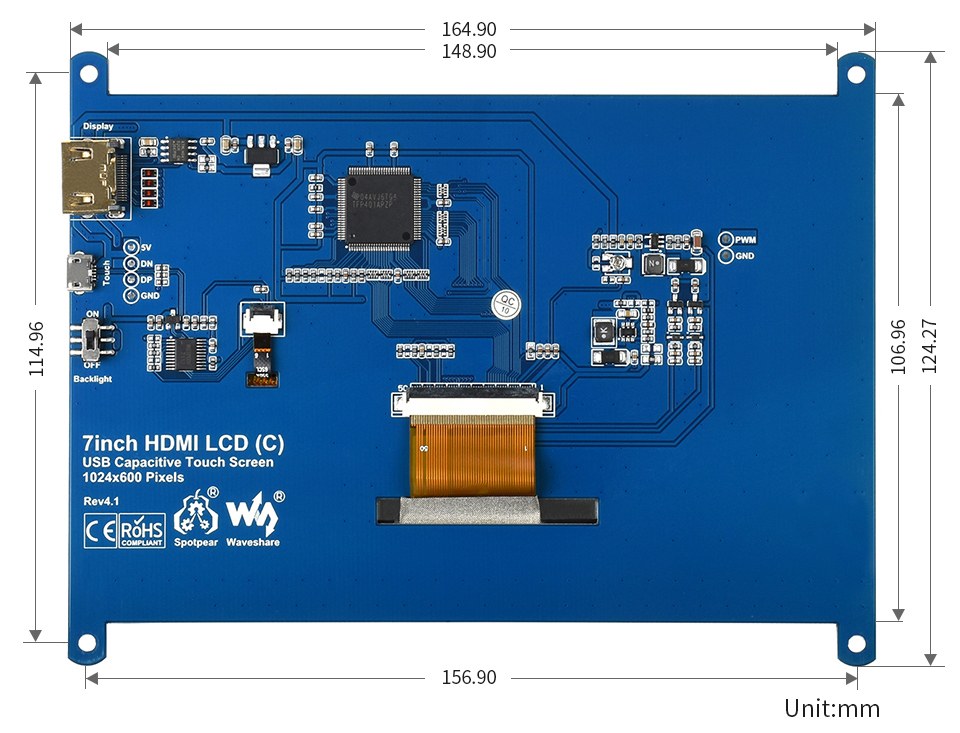

Appearance And Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(C)
Product Certification
HDMI Certified
* We are an official authorized HDMI Adopter.

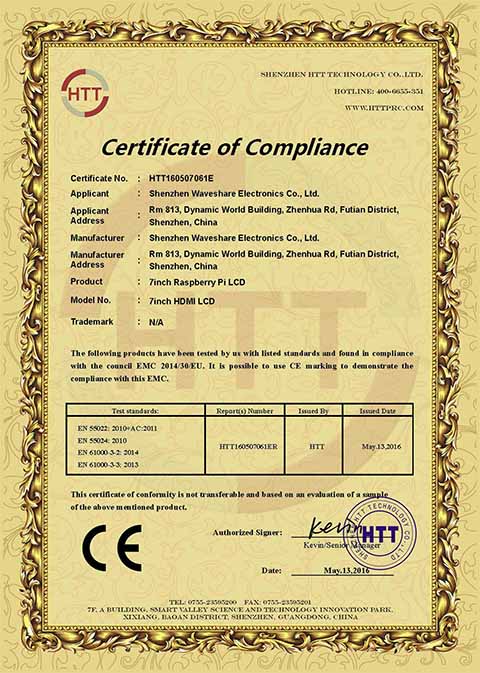

CE Certified
* This display is in compliance with CE standard.
Shipping List
- 1x 7inch HDMI LCD (C)
- 1x HDMI cable
- 1x HDMI to Micro HDMI Adapter
- 1x USB type A plug to micro B plug cable
- 1x RPi screws pack (4pcs)
- 1x Quick start sheet
